PRODUCT NAME :
stainless steel
STANDARD:
GB/T1220-2007 GB/T1221-2007 GB/T20878-2007 ASTM A959-04 ISO4955:2005 ISO683-13 ISO683-16 EN10088:1-1995 EN10095-1999
GRADE COMPARISION:
|
GB |
ASTM |
BS |
JIS |
DIN |
|
12Cr17Mn6Ni5N |
201 |
X12CrMnNiN17-7-5 |
SUS201 |
1.4372 |
ULTRASONIC STANDARD:
GB/T6402-2008 / SEP921-84. ASTM A388
CHEMICAL COMPOSITION:
|
C |
Si |
Mn |
P≤ |
S≤ |
Cr |
Ni |
N |
|
0.15 |
1.0 |
5.5/7.5 |
0.05 |
0.030 |
16.00/18.00 |
3.5/5.5 |
0.05/0.25 |
HEAT TREATMENT SPECIFICATION & MECHANICAL PROPERTIES:
Tensile strength :100,000 to 180,000 psi
Yeiled strength :50,000 to 150,000 psi
Elongation :55 to 60%
Elasticity modulus :29,000,000 psi
Density :.280lbs/cubic inch(density 7.93kg/cm3)

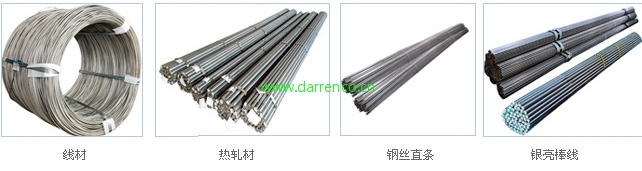

DELIVERY CONDITION :
DIMENSION : mm
|
ROUND STEEL BAR |
COIL ROD |
WIRE |
SQUARE/ FLAT |
|
FORGED BAR |
ROLLED BAR |
HOT ROLLED |
COLD DRAW |
FORGED |
ROLLED |
|
100-350 |
16-250 |
∮5.5-20 |
∮0.2-13 |
120-800×120-800 |
5-38×44-150 10-90×60-305 |
APPLIED RANGE:
The steel have acidproof , alkali-resisting ,desity high,polishing free of bubbles , free pinhole features. Is good material for watchcase,
decorate pipe etc.
REMARK：
Above listed parameters and sepcification only for reference . Specific parameters according to standard. Requirments beyond standard
will be negotiate by both sides .
Delivery state:annealed, spheroidal annealed, quenched & tempered ,bright bar, cold-drawn, etc.
Listed specifications are only typical grades; products of required specifications can be developed/produced per international, Chinese or
industry standards, or based on agreements with customers.
