Stainless steel processing : Shearing & cutting
Decoil and cut to length
Weight of coil 40 tons max , have attacching papper and membrane function. Can eliminate about 65% shape defect of strip (such as wave / abdominal wave / warp /edge bend etc.）.
Processing range : width：100-2150mm length :300-150000mm thickness：0.2-25.4mm
Typical steel grade :
201 202 301 301L 302 303 304 304L 305 308 309 309S 310 310S 316 316L 316Ti 317 317L 321 330 341 347 405 409L 410 410S 410L 420 430 431 439 444 440A 441 S32750 630 631
Our service :
1. We have good cooperation with Chinese famous mills Baosteel, Tisco, Jisco, for S. S. Products, and some international famous mills POSCO, OUTOKUMPU.
2. Special dimension are acceptable. Size range : Thickness: 0.25-14mm Width: 100~1500mm Length: 1000mm-coil or as your requirement , edge:: slit and mill edge.
3. Cutting , Slitting ,surface processing ,welding & bending etc. services are available.
4. Swift Lead time (usually about 20 days for ex-stock and processing).
5. Mill Inspection Certificate and Origin can be provided.
6. Standard: AISI, ASTM, BS, DIN, GB, JIS . All material mentioned are in prime grades.
7. Coil weight: 5 to 20 tons(mainly).
8. We can supply materials with various surfaces(NO. 1, 2B, BA, NO. 3, NO. 4, HL, NO. 8)
9.Productivity: 5000-6000 tons/month
10.Packing: Standard export sea-worthy packing in wooden pallet.
surface processing:
|
Surface Finish |
Definition |
Application |
|
2B |
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. |
Medical equipment, Food industry, Construction material, Kitchen utensils. |
|
BA |
Those processed with bright heat treatment after cold rolling. |
Kitchen utensils, Electric equipment, Building construction. |
|
NO.3 |
Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction. |
|
NO.4 |
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction, Medical equipment. |
|
HL |
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. |
Building Construction. |
|
NO.1 |
The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. |
Chemical tank, pipe.
|
|
8k |
Cold rolled , the product have excellent brightness and prefer reflexivity can to be the mirror. It can be used in buliding decoration elavator decoration, industrial decoration, facilities etc. |
Building , home fixture, industrial fixtrure. |
Stainless steel processing
1. Shearing & cutting

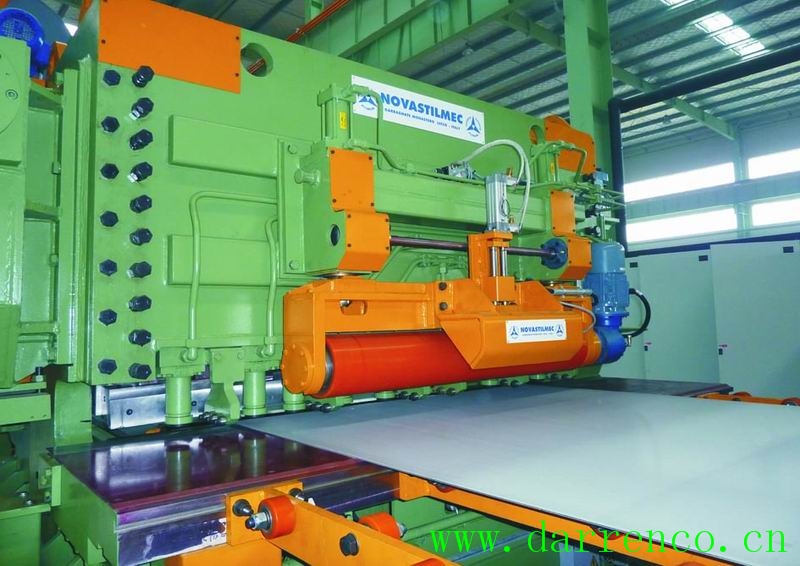

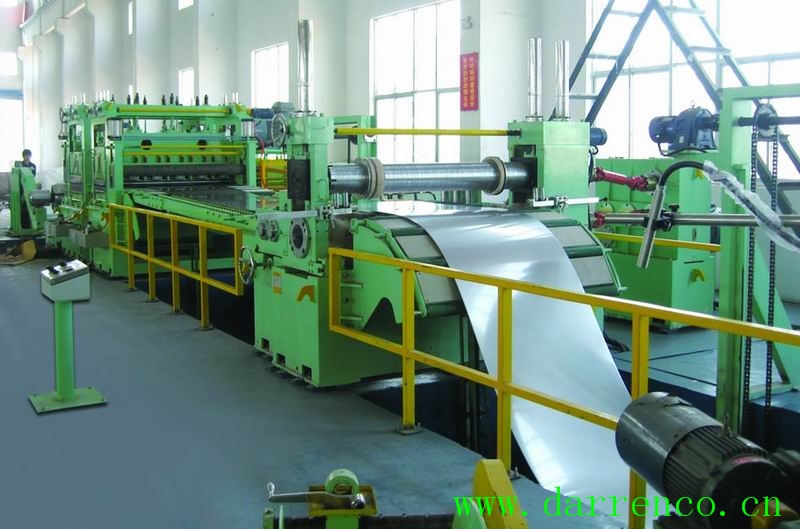

Decoil and cut to length
Weight of coil 40 tons max , have attacching papper and membrane function. Can eliminate about 65% shape defect of strip (such as wave / abdominal wave / warp /edge bend etc.）.
Processing range : width：100-2150mm length :300-150000mm thickness：0.2-25.4mm

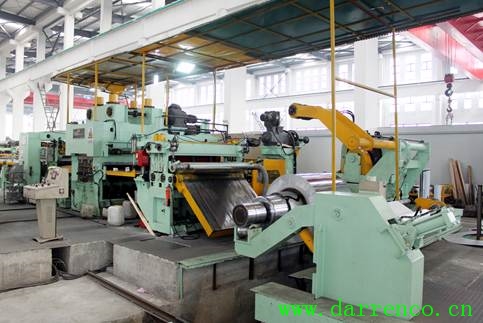

Slitting :
Weight of coil 32 tons max , inner diameter of coil 508mm~610mm. Have attaching papper and membrancefunction .
Processing range : width :100-2150mm thickness :0.1-14mm slitting tolerance :±0.5mm
Water jet cutting :
Cutting thickness 200mm max. Have high dimensional accuracy , no thermal deformation , cutting surface smooth etc characteristics. Among them five axis water jet cutting equipment add cutting tool bit can dynamic change technology. Not only can processing oblique section but also can processing such as cone complex parts . Water jet cutting suitable for cutting bigger thichness , complex shape, high precision requirement parts . Have the effect of semi-finished products .
Laser cutting ：
fast speed , high automation level, norrow kerf width, heat affected zone small, parts local deformation small. Have great advantage for the business which need high accuracy , large thickness and super-long plate or short deliry time. Cutting thickness 1.0-20mm.
Plasmas cutting :
Suitable for cutting bigger parts wich accuracy is not high or plate thickness large. Have low cost, fast speed feature. Cutting thickness 6.0-120mm.
2. Surface processing
Our company can offer multi-style surface polishing on the stainless steel materials, including coil to coil wet polishing, sheet to sheet dry polishing or sheet to sheet wet polishing, mirror polishing, with the main styles No.4, HL, 8K, SB, etc. (Attached PE protective film on the surface , effectively protect surface.)
Dry polishing / abrasive surface:
Width：1000—1500mm Length :1000—6000mm Raw material surface :2B Finished product surface : No.3/No.4/HL Thickness ：0.25-3mm.
Oil surface polishing :
Width : 1000—1500mm Length : 1000—6000mm Raw material surface :2B BA Finished product : 8K/HL(filament)/NO.4（snow pattern or short wire） thickness : 0.25-3mm. Diameter of finihsed product ：508mm Weight of finished product : 20 tons max Out diameter of finished product :1950mm max..
Mirror like surface :
Width :1000—1500mm, Length : 1000—6000mm Raw material surface：2B BA Finished product surface：8K Thickness : 0.31-10mm.
Fingprint resistant surface
Embossing :
We can offer all kinds of embossing according customer’s requirment.
Colorized
Etching
We can offer all kinds of colorized stainless steel and etching stainless steel according customer’s requirment.
3. Sheet-metal processing
Bending
offer all kinds of size gutter.
Welding
We can supply all kinds of grade stainless steel round tube, stainless steel square tube , stainless steel rectangular tube, special shaped tube and exhaust pipe. Length and packing according customer’s requirment. Main grade :201,202,301,304,304L,310，316，316L,409 etc .
Stainless steel flat bar .
