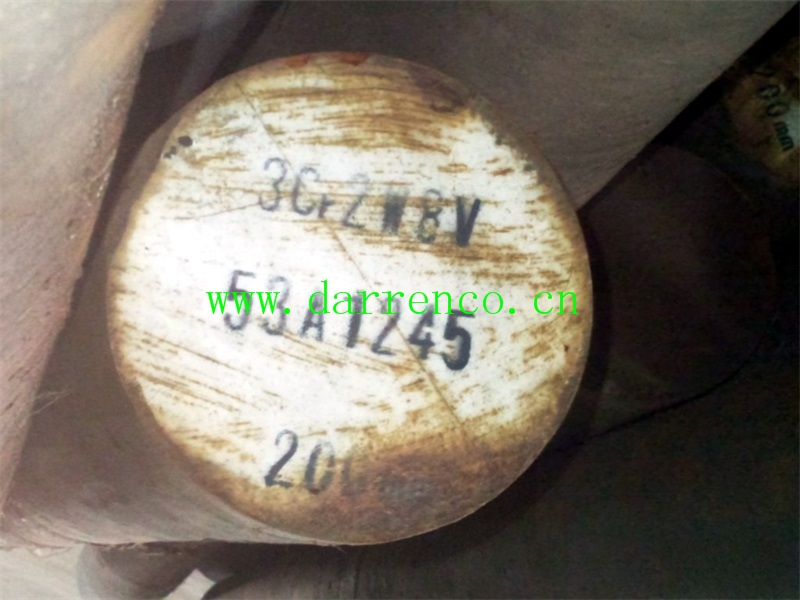

3Cr2W8V/SKD6/1.2581/H21/X30WCrV9-3
1. 牌号 Grade 3Cr2W8V/SKD6/1.2581/H21/X30WCrV9-3
|
GB |
DIN |
W-Nr. |
AISI |
JIS |
BS |
EN |
|
3Cr2W8V |
X30WCrV9-3 |
1.2581 |
H21 |
SKD6 |
|
|
2. 执行标准 Standard GB/T1299-2014
3. 尺寸、外形、允许偏差 Size , shape ,tolerance
|
状态 condition |
公差 tolerance |
|
磨皮 grinding surface |
-0/+5mm |
|
车削 machined surface |
-0/+3mm |
|
自由长度 free length |
4-6m |
|
定尺长度 fixed length |
-0/+50mm |
|
超长 over long |
7-23m |
|
弯曲度 straightness |
≦3mm/m, 总弯曲度total straightness length ≦ total length总长度0.5% |
|
不圆度 ovality |
不大于公称直径公差的0.7倍 Not greater than 0.7 times the nominal diameter tolerance |
|
锻材生产直径范围forged bar dia range |
140-600mm |
4. 冶炼方法 smelting process
电弧炉+炉外精炼+真空脱气冶炼，下注钢锭，电渣重熔需在合同中注明 EAF+LF+VD bottom pour ingot, ESR need indicate in contract
5. 交货状态 delivery condition
退火磨氧化皮、车光、正火、调质，交货状态需合同注明 annealed grinding surface. If need machining, normalizing or Q&T need
indicate in contract
6. 化学成份 chemical composition
|
Grade |
C |
Si |
Mn |
P |
S |
Cr |
W |
V |
|
H21/T20821 |
0.26~0.36 |
0.15~0.50 |
0.15~0.40 |
0.030 Max |
0.030≤ |
3.00~3.75 |
8.50~10.0 |
0.30~0.60 |
|
1.2581/ X30WCrV9-3 |
0.25~0.35 |
0.15~0.30 |
0.20~0.40 |
0.035 Max |
0.035 ≤ |
2.50~2.80 |
8.00~9.00 |
0.30~0.40 |
|
3Cr2W8V |
0.30~0.40 |
≤0.40 |
≤0.40 |
0.030 Max |
0.030 ≤ |
2.20~2.70 |
7.50~9.00 |
0.20~0.50 |
|
SKD5 |
0.25~0.35 |
0.10~0.40 |
0.15~0.45 |
0.030 Max |
0.020 ≤ |
2.50~3.20 |
8.50~9.50 |
0.30~0.50 |
其他元素检测需要合同注明 other elements test result need indicate in contract.
7. 交货硬度 hardness
|
牌号grade |
退火状态交货硬度 annealing condition hardness HBW ≦ |
试样淬火硬度test specimen hardness after Q&T |
|
淬火温度Q&T ℃ |
冷却剂cooling agent |
洛氏硬度HRC ≧ |
|
3Cr2W8V |
255 |
1075-1125 |
油 oil |
|
8. 低倍组织 酸浸低倍试片上不得有目视可见的缩孔、夹杂、分层、裂纹、气泡和白点。Macrostructure No visible shrinkage, inclusion,
delamination, cracks, bubbles or white spots should be observed on the acid – soaked sample piece
|
钢材直径diameter mm |
1组 group |
2组 group |
|
中心疏松 center porosity |
锭型偏析segregation |
中心疏松center porosity |
锭型偏析segregation |
|
级，不大于 class ≦ |
|
≦80 |
2.0 |
2.0 |
3.0 |
3.0 |
|
>80-150 |
2.5 |
3.0 |
3.5 |
3.0 |
|
>150-250 |
3.0 |
3.0 |
4.0 |
4.0 |
|
>250-400 |
3.5 |
3.0 |
4.5 |
4.0 |
|
>400 |
协商 Negotiate |
电渣钢合格级别供需双方协议 ESR steel qualified level need negotiate.
9. 显微组织 microstructure
1) 珠光体组织 合格级别1-5级，热压力加工用钢不检测 pearlite 1-5 class
2) 网状碳化物 直径不大于60MM合格级别不大于3级 carbide network ≦ 3 class
3) 共晶碳化物不均匀度（冷作模具钢检测）Eutectic carbide inhomogeneity
|
钢材直径diameter MM |
共晶碳化物不均匀度合格级别Eutectic carbide inhomogeneity qualified level |
|
1组group |
2组 group |
|
级，不大于 class ≦ |
|
>120-400 |
6 |
协议Negotiate |
|
>400 |
协议Negotiate |
协议Negotiate |
10. 非金属夹杂物 nonmetallic inclusion
电渣钢结果符合1组，真空脱气钢符合2组 ESR steel conform to 1 group , VD steel conform to 2 group
|
非金属夹杂物类别nonmetallic inclusion type |
1组 group |
2组 group |
|
细系thin series |
粗系heavy series |
细系thin series |
粗系heavy series |
|
级，不大于 class ≦ |
|
A |
1.5 |
1.5 |
2.5 |
2.0 |
|
B |
1.5 |
1.5 |
2.5 |
2.0 |
|
C |
1.0 |
1.0 |
1.5 |
1.5 |
|
D |
2.0 |
1.5 |
2.5 |
2.0 |
11. 脱碳层 decarburized layer
脱碳层深度不大于0.25+1%D,直径大于150mm双方协议 decarburized layer depth not greater than 0.25+1%D, diameter over
150mm negotiate.
12. 超声检测 UT test
执行标准GB/T6402-2008,常规规格执行D/d级，直径400以上双方协议，钢材内部不允许有白点、夹渣、分层、内裂、缩孔等冶金缺陷
standard as per GB/T6402-2008 /SEP1921 C/c or D/d class. No white spot, slag inclusion, delamination, cracking, shrinkage
and other metallurgical defects are allowed inside the steel
|
缺陷尺寸级别 defect size level |
单个缺陷平底孔直径single FBH mm |
连续缺陷平底孔直径continuous FBH mm |
连续缺陷最大长度continuous FBH length mm |
|
C |
7 |
5 |
40 |
|
D |
5 |
3 |
30 |
|
E |
3 |
2 |
30 |
|
缺陷数量级别defect qty level |
单个缺陷数量single FBH QTY |
连续缺陷数量continuous FBH QTY |
|
个数，不大于 number ≯ |
|
c |
8 |
4 |
|
d |
4 |
2 |
|
e |
2 |
1 |
13. 表面质量 surface quality
锻材表面没有目视可见的裂纹、折叠、结疤和夹杂，如有上述缺陷就清除，深度不大于截面尺寸4%，清除宽度不小于深度的5倍，There
are no visible cracks, folds, scars or inclusions on the surface. If there are any of the above defects, they should be removed
with a depth not greater than 4% of the section size and a width not less than 5 times of the depth.
14. 特殊要求 special requirements
超出标准约定范围的供需双方协议 The buyer and the seller negotiate beyond the agreed scope of the standard
15. 起订量/交货期30天 MOQ 20 tons 30 days delivery time.
16. 特点及用途 features and applications: 具有很高的韧性和良好的导热性，钢中较高的含钨量，使钢的回火稳定性提高，并在回火过
程中析出碳化物造成二次硬化，因此3Cr2W8V钢的红硬性也较好。（650℃时硬度仍达HB300左右）适用于制作高温下，高应力，但不受
冲击负荷的高硬度的热压模，顶锻模,压铸模等。 It has high toughness, good thermal conductivity and high tungsten content in the steel,
which improves the tempering stability of the steel and causes secondary hardening due to carbide precipitation in the tempering process.
Therefore, the red hardness of 3Cr2W8V steel is also better.(The hardness is still up to ABOUT HB300 at 650℃) Suitable for the production
of high temperature, high stress, but not under impact load of high hardness hot pressing die, top forging die, die casting die, etc.
优势 advantage
炼钢采用气体保护浇注，快锻机开坯，径锻机成材退火，锻造频率高恒温锻造有利于消除沿晶界分布的网状碳化物。Pouring by gas protected ,
blooming by fast forging machine, forming by radial forging machine and annealing, forging with high frequency and constant temperature is
helpful to eliminate the reticulated carbides distributed along the grain boundary.
